Take your AK-I apart.
Put it back together.
AK-I Tufting Gun Disassembly and Reassembly: Advanced Video Guide

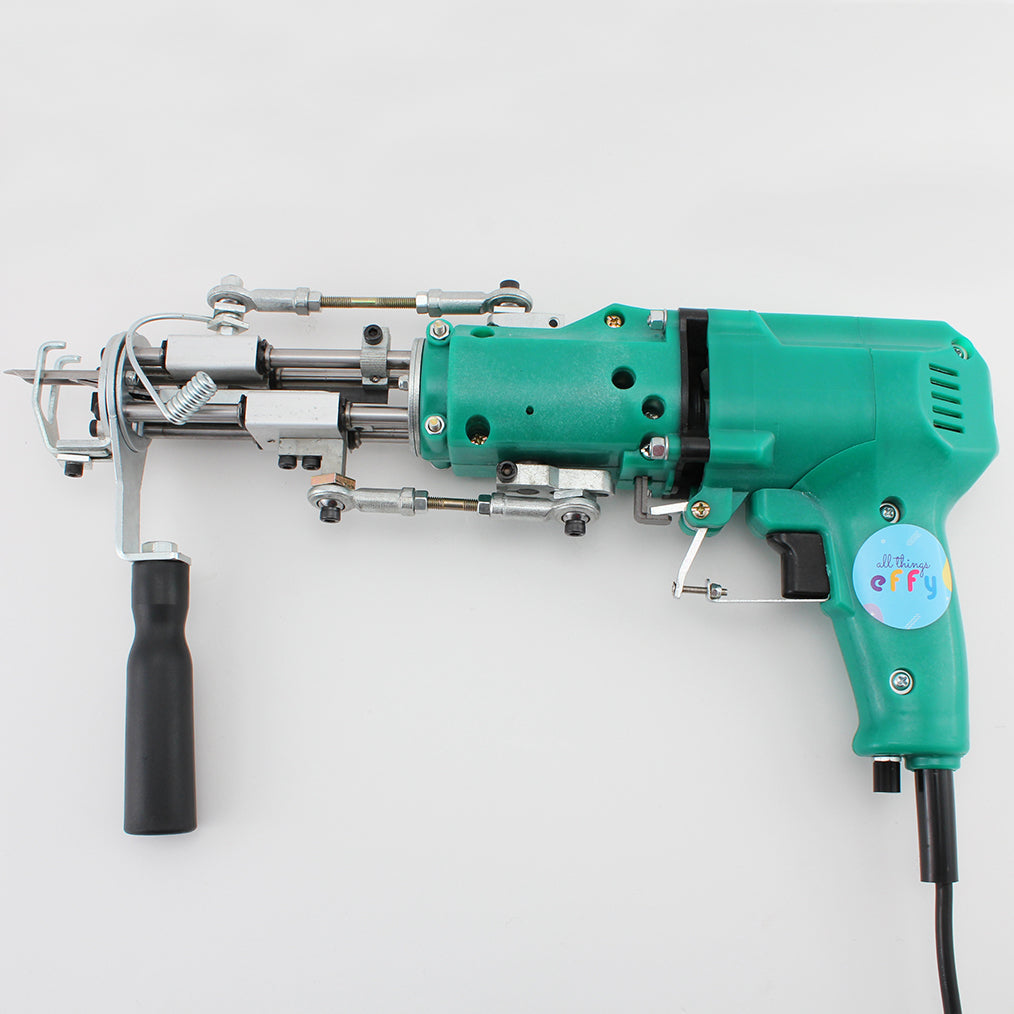

Follow EFFY's two-part archive series on dismantling and reassembling the Original AK-I cut-pile tufting gun. These recordings cover the older machine shown, including its mechanism and spare-part replacement.
For advanced owners: dismantling and reassembling the AK-I can alter its factory settings and mechanical alignment. Returning parts to the wrong positions can affect how the mechanism moves and whether the scissors open and close correctly.
Only undertake this work if you understand the gun's complete operating cycle: how the needle and scissors move, how the scissors open and close during that cycle, and the correct positioning of these parts in relation to one another. You need to understand how the parts work together so you can recognise an incorrect position or movement when putting the machine back together. If you are unsure about any of these points, contact EFFY before dismantling the machine.
01 / BEFORE DISASSEMBLY
Before taking the machine apart
- Watch both the disassembly and reassembly videos in full before starting. Identify the parts shown and how they fit and move together.
- Switch off and unplug the machine before mechanical work.
- Take clear photographs and record the positions, orientation and measurements of the parts in your working setup before removing them.
- Keep the removed parts organised and check that replacement parts match your machine.
- Contact EFFY first if you need diagnosis or warranty support.
Read the EFFY tufting gun warranty before making changes.
02 / PART 1: TAKE APART
Part 1: Disassembly
Original AK-I disassembly — Part 1
Advanced archive tutorial from the 2020–2021 series, republished on YouTube in October 2026. It shows dismantling the cut-pile gun before reassembly or spare-part replacement.
03 / PART 2: REASSEMBLE
Part 2: Reassembly and spare parts
Original AK-I reassembly and spare parts — Part 2
Watch this companion to Part 1 before beginning. The demonstration follows the assembly and parts of the AK-I model shown.
Watch Original AK-I reassembly and spare parts — Part 2 on YouTube
04 / FOR AK-II OWNERS
For AK-II owners
The AK-II is a dedicated loop-pile machine. This series demonstrates the Original AK-I cut-pile mechanism; it is not a complete AK-II disassembly guide. Do not assume the scissor-related steps apply to an AK-II. Email us with your exact model and the work you need to do so we can direct you to the right support.
05 / PRODUCTS & GUIDANCE
Related products and guidance
AK-I and AK-V replacement scissors · Original AK-I product details · AK-II product details.
Read our pile-height and setup guide for the difference between routine maintenance and changing supplied pile height.
Unsure which part or tutorial applies to your machine? Email hello@allthingseffy.com with your model, order details and clear photos. Stop using a machine that jams or shows unusual resistance.
